SWP-WRC3.2 ratti paneli CAN

• Suunniteltu Sabelt 330 ALU ratille, jonka halkaisija 330 mm
• 1 kpl CAN, Mbit/s, 2.0B
• Väylä nopeus valittavissa: 1 Mbit/s, 500 kbit/s, 250 kbit/s, 200 kbit/s, 125 kbit/s ja 100 kbit/s
• 120 Ω päätevastus

• Oikosulkusuojaus

• 1 kpl digitaalinen sisääntulo
• Sisääntulovastus: 4.7 kΩ (5V pull-up)
• 8 kpl painonappeja, taustavalot ja 2 kpl LED valoja
• Napin tila lähetetään CAN viestinä
• 2 kpl kiertokytkimiä, tila lähetetään CAN viestinä
• 2 kpl On–Off drivers
• High side driver Vbattery, up to 1 A
• Output voltage reread
• Linear current limitation
• Oikosulkusuoja
• Ylikuorma ja lämpötila hälytys ja suoja
• 2 kpl LED tilaväriä napeissa (punainen – vihreä)
• Aktivointi CAN viesteinä
• Kaikki LED velot voidaan määritellä napin asennosta riippumatta
• LED valon kirkkaus määriteltävissä ohjelmalla
• 6 kpl väri LED:ä kiertokytkimissä
• LED värejä voidaan muokata tilauksesta

• Näyteresoluution 10 bit
• Lämpötila-alue: -40 / +120 °C
• 2 kpl High side switch outputs voltage reread
• Jännite partition 20 mV
• Analogia anti aliasing filter
• Tarrat tilauksesta
• 20 cm johto ASL606-05PB liittimellä,. Vastaliitin (ASL106-05SB) tilattavissa erikseen.
• Runko billet alumiini ja ABS kuori
• IP54 roiskesuojattu
• Paino 245 g

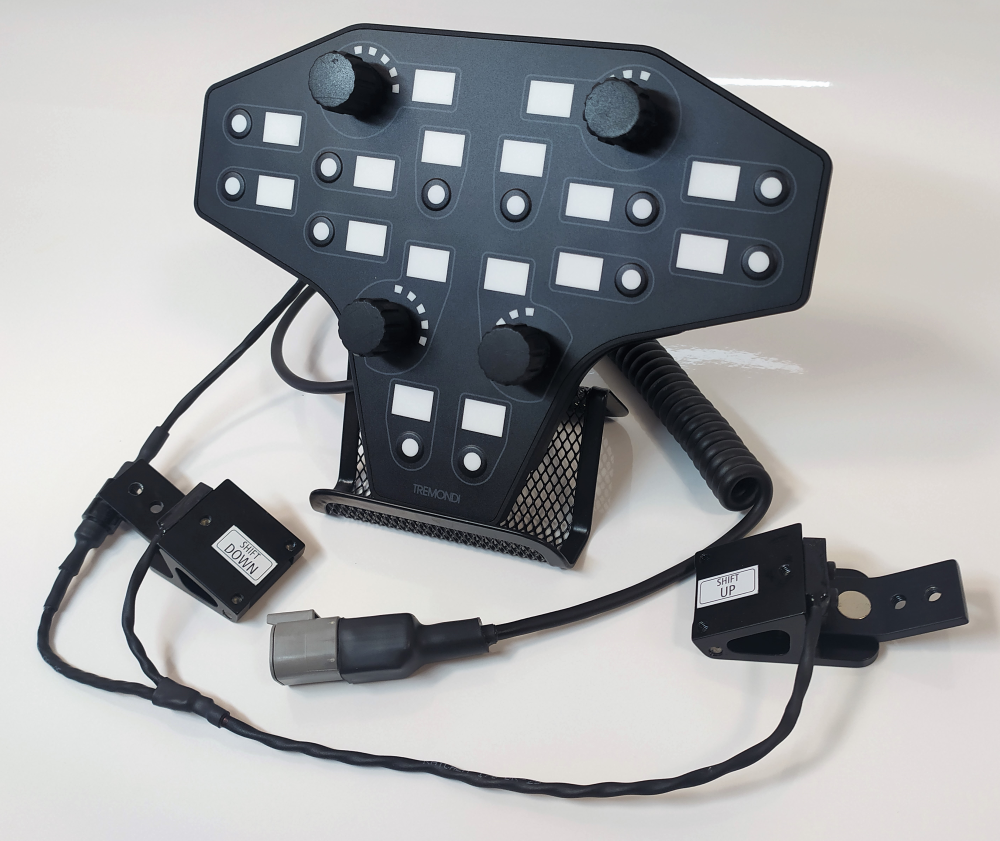

Membrane Steering Wheel Panel

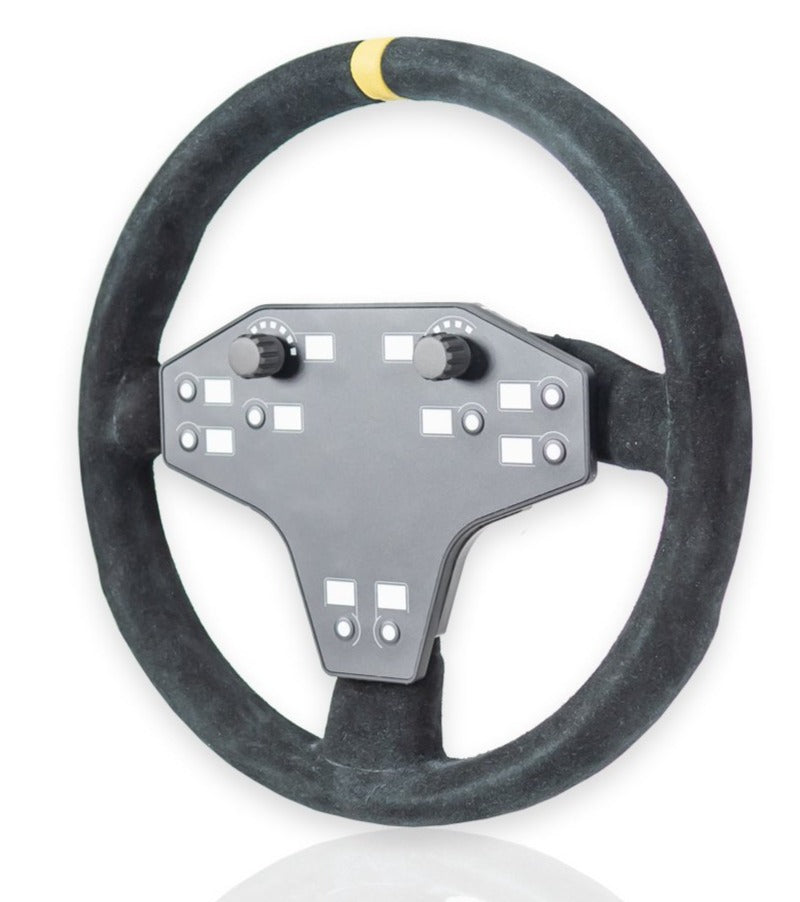

Designed for Sabelt 330 ALU steering wheel. Steering wheel diameter 330 mm.

Note! FIA regulation doesn't allow modification of steering wheel.

1 CAN line

• 1 Mbit/s throughtput data rate. 2.0B protocol.
• Selectable bus speeds: 1 Mbit/s and 500, 250, 200, 125 and 100 kbit/s
• Software selectable 120 Ω terminator

• Protection against short circuit to ground and battery

1 Digital input for programming enable (ENCP)

• Input resistance: 4.7 kΩ (5V pull-up)

Upto 8 Keyboard buttons

• With backlighting
• With integrated 2 – color gauge LED
• Button state transmitted on CAN

2 Mechanical rotary switches

• Compact design – PCB mounted
• Switch state transmitted on CAN
• Mechanical endless with electrical „smart stop“ feature
• Number of positions adjustable by SW

2 On–Off drivers

• High side driver Vbattery, up to 1 A
• Output voltage reread
• Linear current limitation
• Protection against short circuit to ground
• Overload, over temperature feedback and protection

Upto 10 Gauge LEDs

• 2 color state (red – green)
• Integrated in keyboard buttons
• Activation received from CAN
• Each LED controlled independently from button
• LED color adjustable by SW within red – green scale
• Brightness adjustable by SW

2 Status Gauge LED groups at rotary switches

• 6 single colour LEDs at each rotary switch
• Each LED group has its independent control – internally (by firmware) or via CAN
• Position can be memorized at power off
• LED colors can be modified on request (HW modification)

1 Internal temperature

• Sampling resolution: 10 bits
• Temperature range: -40 / +120 °C

2 High side switch outputs voltage reread

• Sampling resolution: 10 bits
• Voltage partition 20 mV
• Analogue anti aliasing filter

Overall dimensions

• Without cable: 189 x 118 x 24 mm
• Including rotary knobs: 189 x 118 x 39 mm

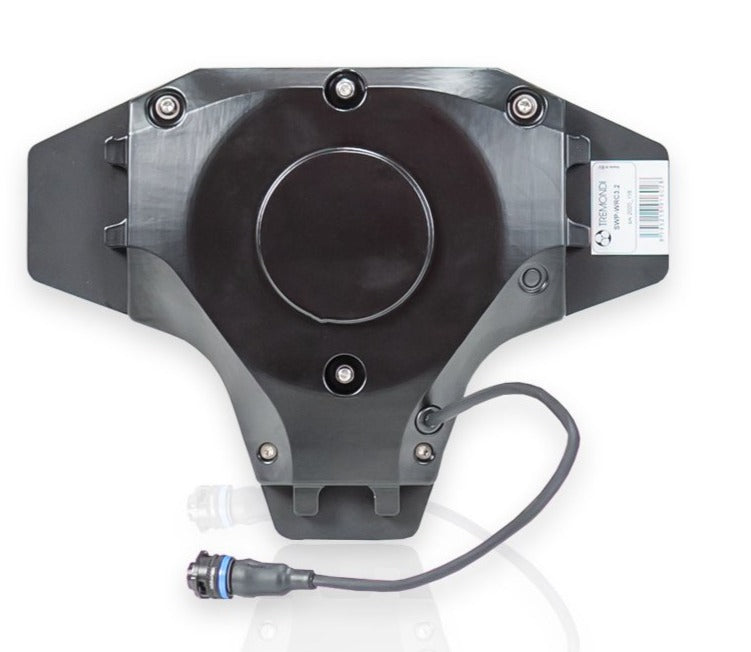

• 20 cm cable with ASL606-05PB connector,. Mating connector (ASL106-05SB) available separately.


Enclosure

• Machined aluminum / ABS cover
• IP grade: IP54

Weight (without steering wheel)

• approx 245 g

Panel mounting on steering wheel usually by cable ties.

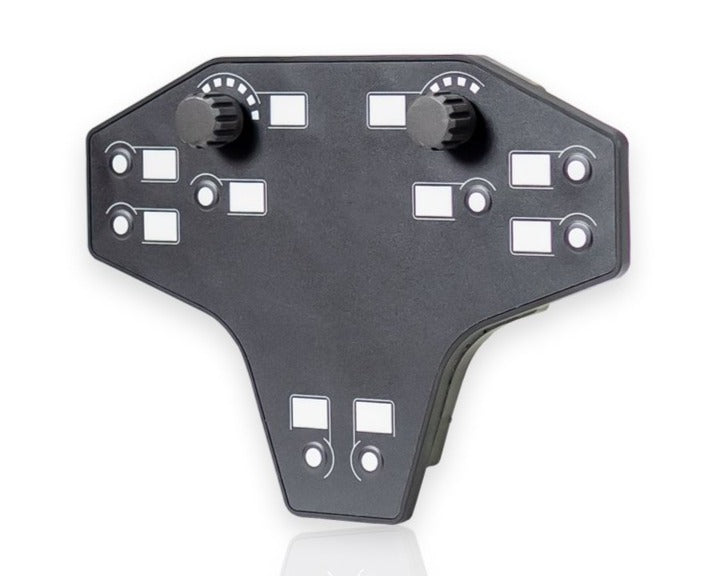

Keyboard layout, shape

• Layout - button positions are optimised to be easillyreachable with the thumb keeping the hand on handgrip
• Laout graphics is an integral part of the membrane applied by seriography
• Relief of buttons are heighten by applying silicone caps on the top of the buttons (height increase upto cca 1.5 mm)
