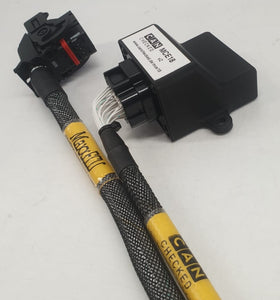

CANchecked MCE18 Analog - CAN muunnin
CMCE18 CAN-väylä muunnin. Soveltuu esim. rattinäppäimien ja kiertokytkimien viestien välitykseen CAN väylään.
- 9 analogi sisääntuloa (0-5V)
- 6 digitaali sisääntuloa (on/off)
- 3 digitaali ulostuloa (on/off LOW SIDE 0.5A)
- 120 Ohm jumpperi
- 50 Hz päivitystaajuss
Testattu seuraavilla:
- CANchecked MFD28/MFD32/MFD32S
- MaxxECU
- Ecumaster
- LinkECU
- Haltech (emulates an IO Extender A+B or only B)
- Syvecs (tulossa)
- Motec (tulossa)
- AIM
Sama tuote on saatavilla ilman kotelointia: CFE18.
CANchecked documentaatio LINKKI
CMCE18 stands for "Multifunction Can Bus Extension" with 18 connections.
For what?
CANchecked displays ( MFD28 , MFD15 , MFD32 , MFD32S ) have four analogue inputs. In some applications, however, this may not be enough and you need more inputs.
It makes sense to map this using the flexible Can Bus protocol. To do this, the sensors are connected to our MCE18 and sent to the device to be received via Can Bus – e.g. one of our displays.
But even freely programmable control units only have a limited number of inputs. This can be easily expanded with our module and sent directly to the control unit.
- 9 analog inputs (0-5V)
- 6 digital inputs (on/off)
- 3 digital outputs (on/off LOW SIDE 0.5A) (new in v2!)
Tested with:
- CANchecked MFD28/MFD32/MFD32S
- MaxxECU
- Ecumaster
- LinkECU
- Haltech (emulates an IO Extender A+B or only B)
- Syvecs (coming soon)
- Motec (coming soon)
- AIM
This device is also available without a housing: CFE18 – can switch board
CANchecked documentation LINK
